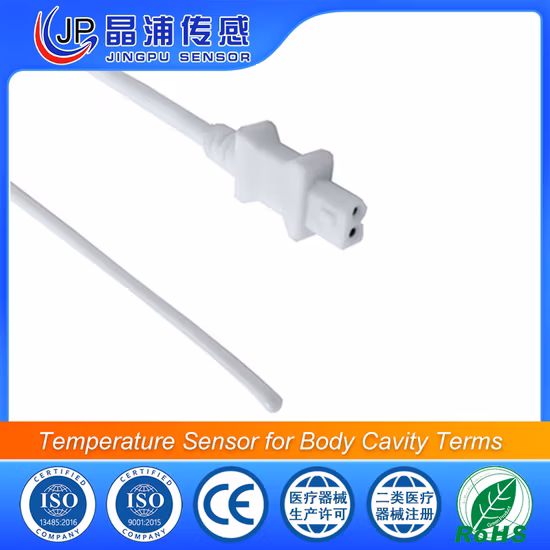

Disposable K9 Temperature Sensor for Body Cavity Terms for Medical Monitors 2.252K
Overview Brief Introduction The item is one disposable medical temperature sensors, it's divided into child human body c
Overview
Basic Info.
| Model NO. | JP400 |
| Measuring Medium | Temperature |
| IP Rating | IP64 |
| Certification | CE |
| Customized | Customized |
| Transport Package | Carton Packing |
| Specification | arond 900mms long |
| Trademark | Jingpu Brand |
| Origin | Hefei, Anhui, China |
| HS Code | 90251910 |
| Production Capacity | 50000PCS/M |
Product Description
Brief Introduction
The item is one disposable medical temperature sensors, it's divided into child human body cavity temperature probe. Resistance value 2.252KΩ. Measured temperature tolerance within(25ºC~45ºC) ±0.1ºC. Compatible for YSI400 series product instead.
Product Features:
Disposable
PVC sleeve
Disposable Tolerance(25~45)ºC±0.1ºC
Operating temperature range: 0ºC~50ºC
7Fr(OD2.3)
Product Application:
Applicable to medical monitors,use with the body monitor in ICU room, emergency room and operating room,continuous temperature monitoring for the patients'body.
Used for temperature measurement of body cavity in children.
Structure & Dimensions:
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Chip | NTC Thermal Chip | 1 | / |
| 2 | Tube | PVCφ2.3 | 1 | white |
| 3 | Plug | TPE(Type M2) Compatible with Molex 03-06-1023 | 1 | white |
