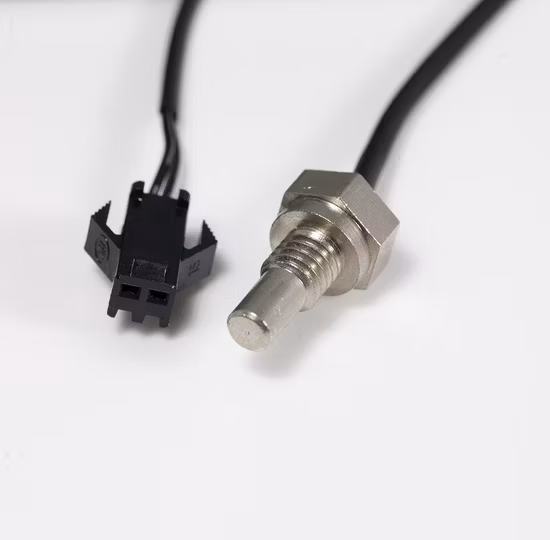

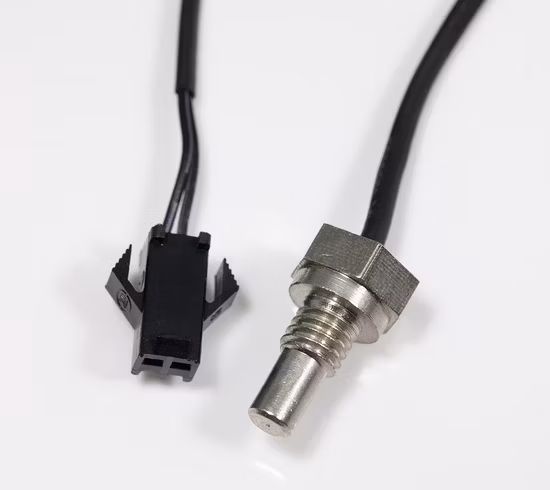

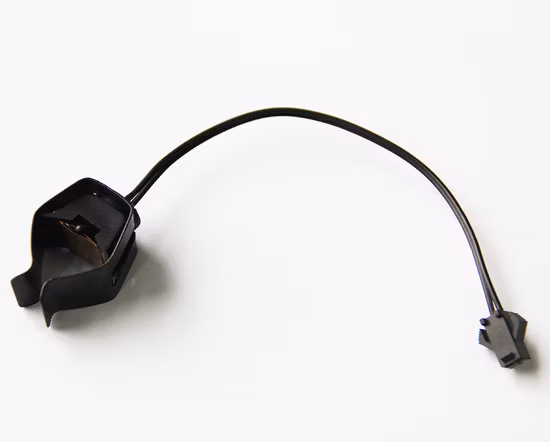

Compatible Ntc Temperature Sensor with Fitting Clip

Basic Info.

Model NO.	MFP-7 Series
Measuring Medium	Temperature
IP Rating	IP65
Certification	RoHS
Customized	Customized
Temperature Range	-40 to +105 Degrees
Transport Package	Natural Export Packing
Specification	fast response
Trademark	Focusens
Origin	Hefei, Anhui, China
HS Code	9025900090
Production Capacity	50, 000 PCS Per Month

Product Description

Specifications:
Sensor: NTC thermistor R25(25°C): 10KΩ
Accuracy: ±1%, ±2%, 3%
B value: R25/50:3435K
Long term stability (1 year): ±0.1%
Working temperature range: -40~~105 Celsius degrees
Lead wire: PVC wire
Other Options:

Sensor Type	NTC: 5K, 10K, 20K, 50K, 100K, customized
Operatating Temperature Range	-20~120 C, -30~250 C,-40~350 C, or customized
Resistance Tolerance	0.5%, 1%, 2%, 3%, 5%
Housing	Nickel plated copper, brass, stainless steel, aluminum, or customized Size is customized
Wire	Teflon wire, PVC wire, Silicone wire, customized; Length is customized
connector	As required
Special Request	Waterproof, anticorrosion, or other

Features:
1. Fast response,
2. High temperature,
3. measuring precision,
4. Small volume,
5. convenient installation,
6. Heat resistant plastic shell,
7. High reliability and long term stability.
Typical Applications:
Pipe heating
Floor heating
Cogeneration systems
